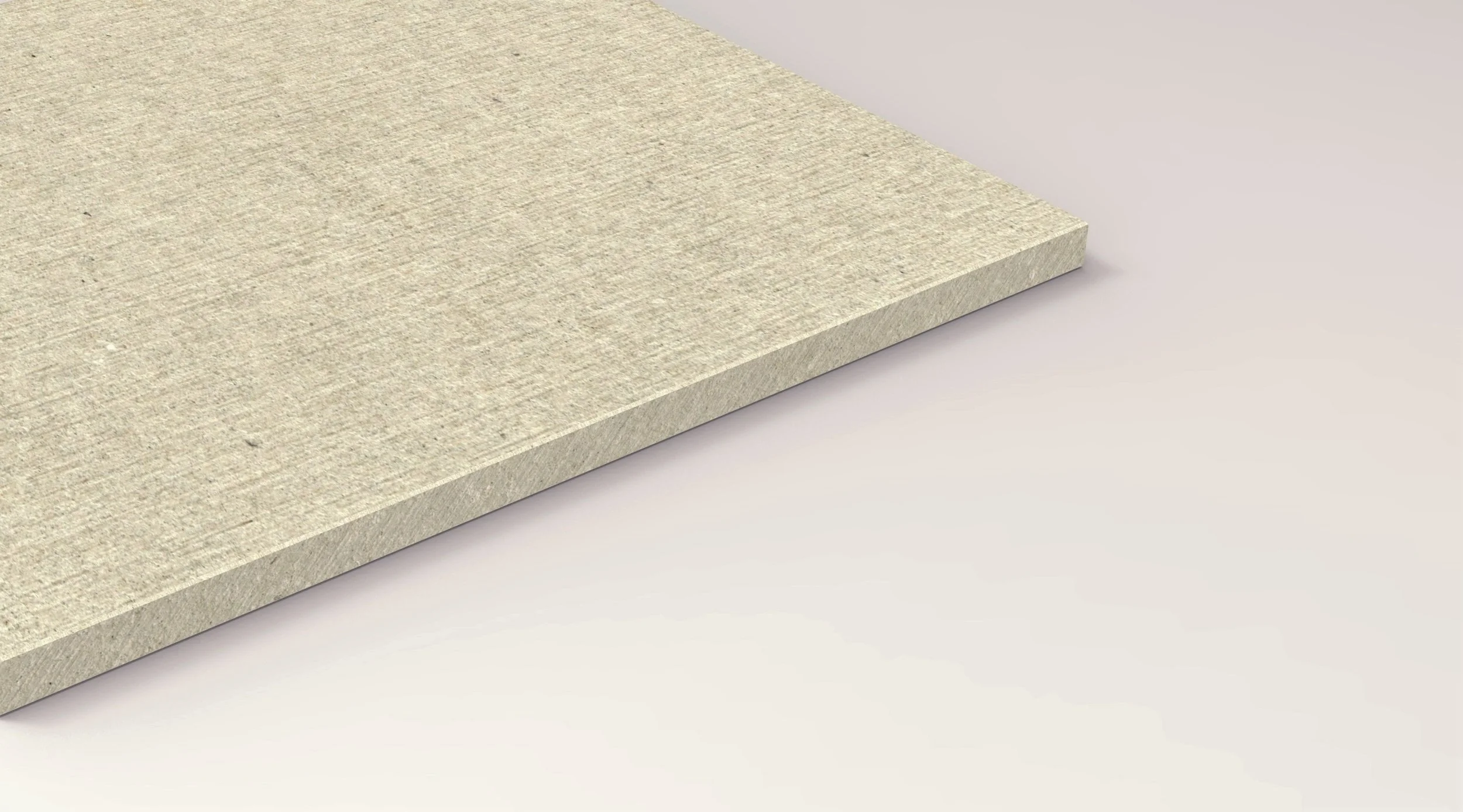

WeatherPro®-CP
DESCRIPTION
WeatherPro®-CP is an autoclaved compressed high density fibre cement reinforced calcium silicate board (alias named as compressed high density fibre cement board). It is an eco-friendly building board endorsed by third party accreditation bodies for green building label. It does not contain any harmful substances or inorganic fibres and is free from formaldehyde and toxic emissions. The compressed fibre cement board has high levels of durable performance in the presence of wet and severe weather.
WeatherPro®-CP is intentionally designed for external cladding and flooring applications where severe weather of all kinds and
require good resistance to impact. Frosts and thaws, intensive heat, drenching, none of these threatens to WeatherPro®-CP. It offers strong technical specification, having CE marked in compliance with durability and aging tests EN 12467: Category A sheet which is for applications where may be subjected to heat, moisture and severe frost weathering conditions. In addition, it conforms the standard of Australia AS/NZS 2908.2 and America ASTM C 1185 for external fibre cement products. WeatherPro®-CP is non-combustible in terms of Reaction to Fire EN 13501-1 Euro Class A1 and BS 476: Part 4, as well as BCA classification in Australia.
WeatherPro®-CP is robust with inborn impressive good strength and good resistance to heavy impact. It is economical and durable
when comparing with traditional concrete panel walls, metal panels for similar applications. Impact wall furring, left-in formwork for
reinforced concrete construction, interior or exterior flooring and external wall panel installed at high rise building, all of them are
easily constructed with WeatherPro®-CP. It is highly compatible to decorative finishes from site-applied acrylic textures, to factory- applied ceramic coatings or metallic finishes. WeatherPro®-CP can be left un-painted due to its dense crystalline structure is watertight and resists moisture penetration. With exemplary strength of the board which provides a reliable substrate to receive heavy decorative finishes such as marble tiles.
WeatherPro®-CP is made from selected cellulose fibre reinforcement, synthetic cement binder and calcium silicate matrix. The board is formed by multiple thin layers then compressed under tremendous pressure pressing. By specialised autoclaving curing process whereby the ingredients are transformed to crystalline structure under the effects of super-heated steam and high pressure. As a result, enhancing impressive strength and durability of the board that is capable of heavy duty usage. The synthetic cement binder provides exceptional dimensional stability and an unrivalled resistance to movement owning to combined effects of all seasons’ weather. WeatherPro®-CP retains its shape at all times and will not degrade. The life of the product is limited only by the durability of the supporting structure and materials used in fastening.
The board does not contain any soluble ingredients or free alkali which could be dissolved by moisture or condensation and causing unsightly marks or effloorescence. If exposed to water, the board will completely recover on drying out, with no permanent loss of strength. It resists rot or fungal infection and is unaffected by sunlight and steam. Any staining on the board caused by leakage can be easily painted over.
WeatherPro®-CP is naturally light grey in colour and has smooth finish on both sides. No rendering of cement mortar is needed to receiving decorative finishes. Alkali-resisting primer is not required. WeatherPro®-CP is manufactured to Quality Management System Certification ISO 9001, Environmental Management System Certification ISO 14001, Hong Kong Green Label as well as Singapore Green Label.
PROPERTIES
APPLICATION
WeatherProl®-CP is versatile both internal & external applications where are subjected to crowd pressure or heavy impact resistance.
It has excellent level of durability & stability in the presence of
severe weather of all kinds. The compressed fibre cement combines impressive strength with ease of working and handling. Minimal or no maintenance is required on the following applications:
Aesthetic curved constructions
Claddings in tunnels/stations
Claddings/sheathing boards for pre-fabricated units
External wall claddings for high rise buildings
External decking
Flooring board
Fascias and shop fronts
Heavy Impact resistant sheathing boards
Left-in formwork for bridge or floor constructions
Noise barriers at highway
Roof slates or roof panels
TECHNICAL PERFORMANCE
WeatherPro®-CP is an eco-friendly high performance CE marked fibre cement board with strong technical specification of international standards. It imparts impressive strength, excellent durability and dimensional stability when exposed to severe weather of all kinds.
| TEST | STANDARD | RESULT |
|---|---|---|
| Density | BS EN 12467 | 1580 kg/m3 +/-6% |
| Nominal weight | Ambient | 10.3kg/m2 - 6mm 13.7kg/m2 - 8mm 15.4kg/m2 - 9mm 18.6kg/m2 - 12mm 27.9kg/m2 - 18mm 31.0kg/m2 - 20mm |
| Size | 1220 x 2440mm 1200 x 2400mm 1220 x 3050mm 1200 x 3000mm |
|
| Surface alkalinity | pH 7-10 | |
| Flexural strength | BS EN 12467 | 14.0 N/mm2 - transverse 21.0 N/mm2 - longitudinal |
| Bending modulus | BS EN 12467 | 9500 N/mm2 - transverse 13000 N/mm2 - longitudinal |
| Compressive strength | BS EN 771-2 | 52.30 N/mm2 - parallel to the plane of board |
| Minimum bending radius | 4.3m - 6mm, longitudinal 6.5m - 9mm 8.8m - 12mm |
|
| Sag when suspended at 610mm span | ambient | Less than 1mm |
| TEST | STANDARD | RESULT |
|---|---|---|
| Durability and strength tests | BS EN 12467 CE Marked fibre cement |
Category A sheet, intended for applications where are subjected to heat, high moisture and severe frost |
| Durability and strength tests | AS/NZS 2908.2 | Type A sheet, intended for external applications where are subjected to the direct action of sun, rain and/or snow. |
| Durability and strength tests | ASTM C 1185 | External applications & cladding products |
| Water impermeability | BS EN 12467 AS/NZS 2908.2 ASTM C 1185 |
No formation of drops of water after a 24-hour of test |
| Heat-Rain | BS EN 12467 AS/NZS 2908.2 ASTM C 1185 |
50 test cycles for EN standard 25 test cycles for AS/NZS & ASTM standards No damage or leakage after test cycles of test with radiant heat 60°C |
| Warm water | BS EN 12467 AS/NZS 2908.2 ASTM C 1185 |
Pass in water at 60°C for 56 days |
| Soak-dry | BS EN 12467 AS/NZS 2908.2 ASTM C 1185 |
Pass 50 test cycles for EN standard 25 test cycles for AS/NZS & ASTM standards |
| Freezing and thawing | BS EN 12467 AS/NZS 2908.2 ASTM C 1185 |
100 test cycles for EN Standard 50 test cycles for AS/NZS & ASTM standards No alteration nor de-lamination after 100 cycles of test at temperature of -20°C ~ 20°C |
| TEST | STANDARD | RESULT |
|---|---|---|
| Moisture movement | BS EN 12467 | +0.06% @23°C, RH 30%~95% |
| Dimensional changes in length due to relative humidity | BS EN 318 | +0.02% @20°C, RH 30%~85% - 0.02% @20°C, RH 85%~30% |
| Moisture content | Ex works - 15% In situ - 7% |
|
| Water absorption capacity | BS EN 771-2 | ~ 20% |
| TEST | STANDARD | RESULT |
|---|---|---|
| Thermal conductivity | EN 12664 | 0.30 W/mK |
| Linear thermal expansion | BS EN ISO 10515-8 | -6.7 x 1E-7/°C |
| Resistance to continuous heating | In-house | 80°C |
| Fire rated systems | BS 476: Part 22 | up to 60 minutes- external wall system |
| Non-combustible | BS 476: Part 4 BS EN ISO 1182 |
Pass |
| Heat of combustion | AS/NZS 3837 BS EN ISO 1716 ULC S135-04 |
Pass |
| Reaction to Fire - Classification | EN 13501-1 | Euro Class A1/A1 FL |
| Australian classification of fire | BCA 2011 | Group 1 |
| Canadian classification of fire | NBCC | Non-combustibility |
| Product certification scheme | Singapore | Class 2 |
| TEST | STANDARD | RESULT |
|---|---|---|
| Green labeled building board | Hong Kong, Singapore | Certified, no heavy metal & no harmful substance |
| Organic emission | ASTM D5116-06 | Non toxic & No formaldehyde, satisfied the emission tests |
| Recyclable product | ISO 14001 | Crushed down for recycle use, Products made under ISO 14001 environmental management system |
| TEST | STANDARD | RESULT |
|---|---|---|
| Acoustic reduction (over range 100-3150 Hz) | AS 1276.1 & 1191 ASTM E90 & E413 EN ISO 10140-3 & 717-1 |
STC/Rw (dB) - steel framed partition 29 - 6mm 31 - 9mm 33 - 12mm |
| Impact Resistance | ||
| MOH’s Hardness | EN 101 | Hardness 2 ~ 3 |
| Impact test | BS EN 1128 | 32.98mm/mm |
| Resistance to surface deep abrasion | BS EN ISO 10545-6 | 1439mm3 |
| Note: All physical performance values of products depicted in this technical handbook are averages based on the standard production. The figures may be changed dependent on the test method used. | ||
