WeatherPro®-L
DESCRIPTION
WeatherPro®-L is a heavy duty autoclaved fibre cement reinforced calcium silicate board (alias named as fibre cement board). It is an ecofriendly building board endorsed by third party accreditation bodies for green building label. It does not contain any harmful substances or inorganic fibres and is free from formaldehyde and toxic emissions.
The board has high levels of durable performance in the presence of wet and severe weather. WeatherPro®-L is intentionally designed for applications where impact resistance is required in high humid environment. It offers strong technical specification, having CE marked in compliance with durability and aging tests EN 12467: Category A sheet which is for applications where may be subjected to heat, moisture and severe frost weathering conditions. In addition, it also meets the standard of Australia AS/NZS 2908.2 and America ASTM C 1185 for external fibre cement products.
WeatherPro®-L is non-combustible in terms of Reaction to Fire EN 13501-1 Euro Class A1 and BS 476: Part 4, as well as approval in Australia and Japan. Economical and versatile functions make WeatherPro®-L as a real substitute of marine plywood, cement-bonded particle board, gypsum board or magnesium oxide board. It is light-weight, robust and water resistant. It will not warp, swell or decay in wet area. WeatherPro®-L is an excellent substrate for ceramic tiles at wet areas. It can be applied in direct weathering applications when used in conjunction with external grade paint finishes. WeatherPro®-L is produced from a mixture of cement, ground sand, special cellulose fibres and selected fillers to impart durability, toughness, and water resistance. The board is then cured by autoclaving process whereby the ingredients are transformed to crystalline structure under the effects of super-heated steam and high pressure. The synthetic cement silicate binder provides exceptional dimensional stability and an unrivalled resistance to movement due to effects of moisture or heat. The board will not rot or support fungal growth and is unaffected by sunlight and steam.
WeatherPro®-L will not degrade with time and within normal applications, the life of the product is limited only by the durability of the supporting structure and materials used in fastening. The board does not contain any soluble ingredients or free alkali which could be dissolved by moisture or condensation and causing unsightly marks or effiorescence. If exposed to moisture, the board will completely recover on drying out, with no permanent loss of strength. Any staining on the board caused by leakage can be easily painted over. WeatherPro®-L is natural off white in colour and has a smooth finish on one side and a slightly textured reverse. No rendering cement mortar is needed to receiving decorative finishes.
WeatherPro®-L is manufactured to Quality Management System Certification ISO 9001, Environmental Management System Certification ISO 14001, Hong Kong Green Label as well as Singapore Green Label.
Properties
APPLICATION
WeatherPro®-L is a versatile fibre reinforced cement building board for both internal & external use. It has very high levels of durable performance in the presence of wet and severe weather. The fibre cement reinforced calcium silicate matrix allows WeatherPro®-L with good flexurall strength and resistance to impact. It is easy to curve, cut and fix. Typical applications include:
Acoustic, water and impact resistant partitions
Aesthetic curved constructions
Backing board for metal claddings
Backing board for marble/ceramic tiles
Backing board for furniture/vanity top at wet areas
Casings for building services
Composite wall panels
Decking and flooring applications at balconies, verandahs and pool surrounds
External parapet linings, wall planking claddings and facades
Green roof sheathing board
Smoke vent covers and access hatches
Sunscreens, eaves and roof sarking boards
Winding / weather resistant roofings and ceilings
TECHNICAL PERFORMANCE
WeatherPro®-L is eco-friendly high performance CE marked fibre cement board with strong technical specification of international standards. It imparts extreme high durability and dimensional stability when exposed at severe weather.
| TEST | STANDARD | RESULT |
|---|---|---|
| Density | BS EN 12467 | 1300 kg/m3 +/-5% |
| Nominal weight | Ambient | 8.6 kg/m2 - 6mm 12.9 kg/m2 - 9mm 17.2 kg/m2 - 12mm 21.5 kg/m2 - 15mm 28.7 kg/m2 - 20mm 35.8 kg/m2 - 25mm |
| Size | 1220 x 2440mm 1200 x 2400mm |
|
| Size | 1220 x 2440mm 1200 x 2400mm 1220 x 3050mm 1200 x 3000mm |
|
| Surface alkalinity | pH 7-10 | |
| Flexural strength | BS EN 12467 | 9.5 N/mm2 - transverse 14.1 N/mm2 - longitudinal |
| Bending modulus | BS EN 12467 | 7100 N/mm2 - transverse 8300 N/mm2 - longitudinal |
| Compressive strength | BS EN 771-2 | 27.3 N/mm2 - parallel to the plane of board |
| Minimum bending radius | 4.8m - 6mm, longitudinal 7.2m - 9mm 9.8m - 12mm |
|
| Sag when suspended at 610mm span | ambient | less than 1mm |
| TEST | STANDARD | RESULT |
|---|---|---|
| Durability and strength tests | BS EN 12467 CE Marked fibre cement |
Category A sheet, intended for applications where are subjected to heat , high moisture and severe frost |
| Durability and strength tests | AS/NZS 2908.2 | Type A sheet, intended for external applications where are subjected to the direct action of sun, rain and/or snow. |
| Durability and strength tests | ASTM C 1185 | External applications & cladding products |
| Water impermeability | BS EN 12467 AS/NZS 2908.2 ASTM C 1185 |
Filled with water after 24 hours, no leakage or any water drops |
| Heat-Rain | BS EN 12467 AS/NZS 2908.2 ASTM C 1185 |
50 test cycles for EN standard 25 test cycles for AS/NZS & ASTM standards No damage or leakage after test cycles of test with radiant heat 60°C |
| Warm water | BS EN 12467 AS/NZS 2908.2 ASTM C 1185 |
Pass in water at 60°C for 56 days |
| Soak-dry | BS EN 12467 AS/NZS 2908.2 ASTM C 1185 |
Pass 50 test cycles for EN standard 25 test cycles for AS/NZS & ASTM standards |
| Freezing and thawing | BS EN 12467 AS/NZS 2908.2 ASTM C 1185 |
100 test cycles for EN Standard 50 test cycles for AS/NZS & ASTM standards No alteration nor de-lamination after 100 cycles of test at temperature of -20°C ~ 20°C |
| TEST | STANDARD | RESULT |
|---|---|---|
| Moisture movement | BS EN 12467 | +0.06% @23°C, RH 30%~95% |
| Dimensional changes in length due to relative humidity | BS EN 318 | +0.02% @20°C, RH 30%~85% - 0.02% @20°C, RH 85%~30% |
| Moisture content | Ex works - 15% In situ - 5% |
|
| Water absorption capacity | ASTM C1185 BS EN 771-2 |
~ 30% |
| TEST | STANDARD | RESULT |
|---|---|---|
| Thermal conductivity | ASTM C 518 EN 12664 |
0.30 W/mK 0.26 W/mK |
| Linear thermal expansion | BS EN ISO 10515-8 | -3.4 x 1E-7/°C |
| Resistance to continuous heating | In-house | 80°C |
| Fire rated systems | BS 476: Part 22 | up to 60 minutes external wall system |
| Non-combustible | AS 1530.1 BS 476: Part 4 BS EN ISO 1182 JIS A 1312 |
Pass Ministry of Land & Transport, Japan. Approval No. NM-3767 |
| Heat of combustion | AS/NZS 3837 BS EN ISO 1716 |
Pass |
| Reaction to Fire - Classification | EN 13501-1 | Euro Class A1/A1 FL |
| Australian classification of fire | BCA 2011 | Group 1 |
| Product certification scheme | Singapore | Class 2 |
| TEST | STANDARD | RESULT |
|---|---|---|
| Green labeled building board | Hong Kong, Singapore | Certified, no heavy metal & no harmful substance |
| Organic emission | ASTM D5116-06 | Non toxic & No formaldehyde, satisfied the emission tests |
| Recyclable product | ISO 14001 | Crushed down for recycle use, Products made under ISO 14001 environmental management system |
| TEST | STANDARD | RESULT |
|---|---|---|
| Acoustic reduction (over range 100-3150 Hz) | AS 1276.1 & 1191 ASTM E90 & E413 EN ISO 10140-3 & 717-1 |
STC/Rw (dB) - steel framed partition 28 - 6mm 30 - 9mm 32 - 12mm 48 - 88mm |
| Load Bearing Resistance | ||
| MOH’s Hardness | EN 101 | Hardness 2 ~ 3 |
| Impact test | BS EN 1128 | 32.48mm/mm |
| Uniformly distribution load test | BS EN 1195 BS 6399 - Table 1 (Clear span at 550mm) |
24mm board - 35 kN/m2 |
| Concentrated load test | BS EN 1195 BS 6399 - Table 1 (Clear span at 550mm) |
24mm board - 35 kN/m2 |
| De ection subject to Uniformly distribution load at 3 kN/m2 | BS EN 1195 BS 6399 - Table 1 (Clear span at 550mm) |
20mm board No visible damage |
| Note: All physical performance values of products depicted in this technical handbook are averages based on the standard production. The figures may be changed dependent on the test method used. | ||
Download a brochure
To receive exclusive access to this product brochure, please enter your details below.
REQUEST SAMPLES & TECHNICAL DOCUMENTS
To request samples and receive further product technical information,
please contact us here.

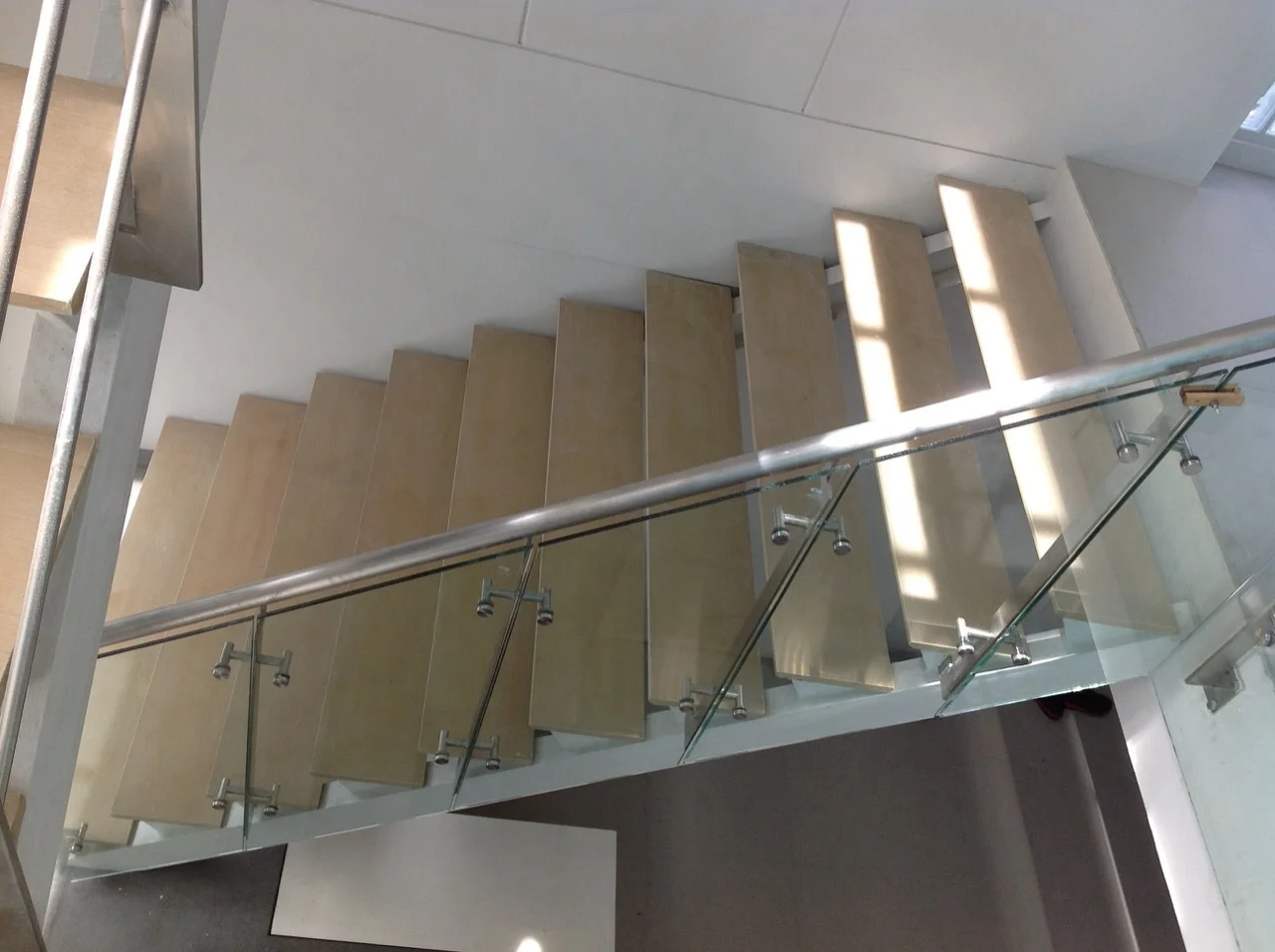

See WeatherPro-L® In Action
